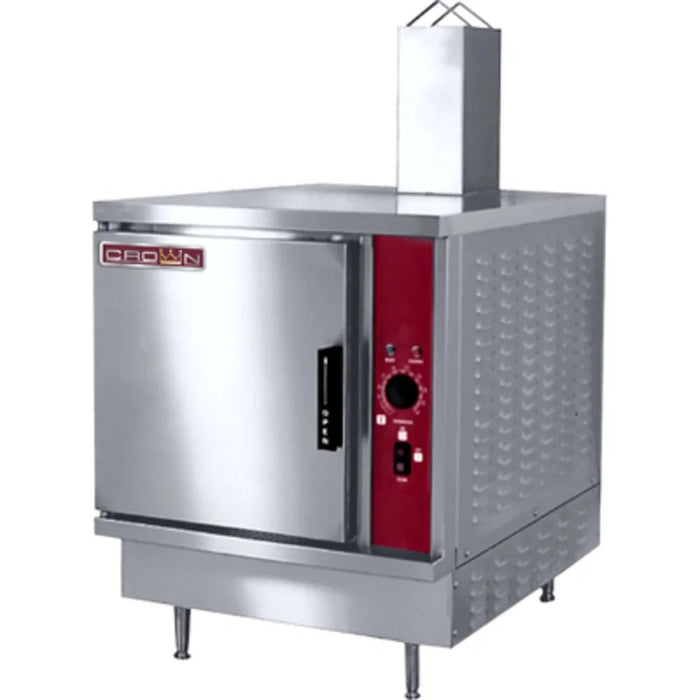

Crown Steam SX‐5G3 Auto Fill Natural Gas Countertop Steamer - 47,000 BTU
Product Overview
- 304 stainless steel exterior
- 316 stainless steel cooking chamber with coved corners
- Heavy gauge stainless steel door with full perimeter gasket
- Positive lock and seal mechanism with spring release door
- Illuminated power switch
- Ready indicator light
- Cooking indicator light
- 60 minute electromechanical timer with end of cycle audible alarm
- Removable stainless steel pan supports
- 4” adjustable legs
- Electromechanical controls
Description
The SX-5G3 is a convection steamer with a gas fired stainless steel steam generator. The cavity has a 5-pan capacity. The steamer is constructed of a satin finish stainless steel, type 304. The cooking chamber is a one piece all welded, type 316, stainless steel with coved corners. The heavy duty door has an inner liner of stainless steel with a full perimeter gasket seal, an outer liner of one piece all welded stainless steel, and a positive lock and seal mechanism with spring release. The compartment is provided with removable stainless steel pan supports. A stainless steel drip trough is integrally connected to the drain in order to collect condensate when the door is opened.
The control housing, constructed of stainless steel with a full access removable panel contains the controls which include an illuminated three way power switch (On/Off/De-lime), a pilot ready light, a pilot cooking light, 60 minute electric timer with audible alarm at the end of the cooking cycle, solid state generator controls, and electronic ignition. Steam flow to the cooking chamber is interrupted when the door is opened and is reactivated when door is closed.
Standard features include automatic generator blow down, de-lime mode power setting and a de-liming port for the generator located on the right side panel. The unit also comes with split water connections for simple hook up to a water treatment system. Steamer is mounted on 4” high stainless steel adjustable legs.
Specifications
| Specifications | |
|---|---|
| Model | SX-5G3 |
| Width | 24 Inches |
| Depth | 32 Inches |
| Height | 39.56 Inches |
| BTU | 47,000 BTU |
| Supply Pipe Pressure (W.C.) | Natural Gas 6” - 14” (152 - 356 mm) |
| Pan Capacity | 5 Pans (2.5" Deep) |
| Style | Countertop |
| Material | Stainless Steel |
| Type | Steamer |
