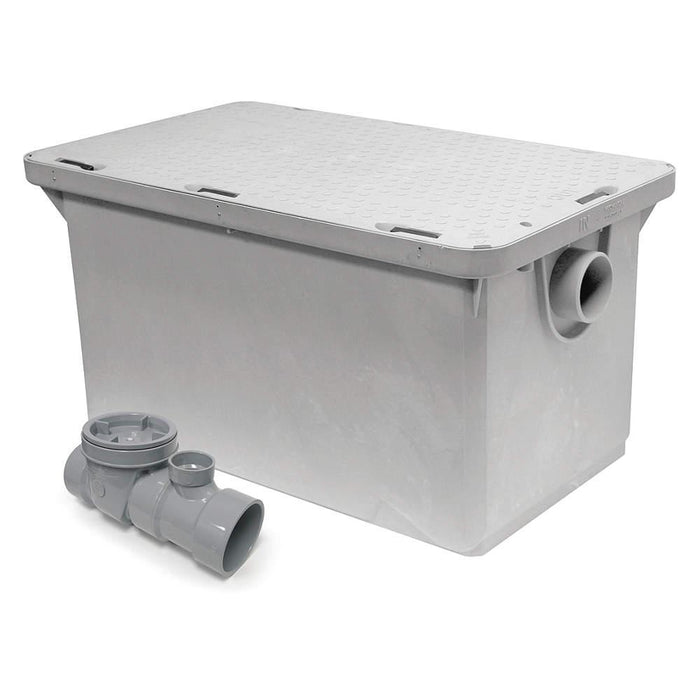

Canplas 3925XTA03 25 GPM Grease Interceptor - 50 lb. Capacity Min., 3" Connection
Product Overview
- 25 GPM flow rate
- Heavy-duty engineered thermoplastic
- Grease separation efficiency
- 50 lb grease capacity
- Easy-to-clean smooth exterior
- 3" connection
Description
Preventing excessive grease accumulation and serious blockages in your plumbing is simple with the Canplas Endura 25XT Grease Interceptor.
Grease interceptors have become the industry standard in grease management and are designed to separate non-petroleum fats, oils, and grease from wastewater.
Appearance and Composition
Canplas Endura tanks are constructed out of molds in order to eliminate any seams that could potentially cause leakage. The eco-friendly, engineered thermoplastic material is durable and ensures tanks won’t corrode, chip, or peel even under harsh conditions.
The Endura 25XT is a new, user-friendly interceptor model and can be installed on the floor, in-floor, or slightly recessed. The tank’s cover can support an impressive 440 lb (220 kg) of pedestrian or light traffic, and its tool-free easy open latches make accessing the tank’s interior, effortless. A new production process allows for a smooth exterior surface that still provides rigidity without the need for ribs, making cleaning much easier than other tank models.
A small 3” connection as well as an air tight silicone seal prevent odours from leaving the interceptor.
Flow Rate and Capacity
This Endura grease interceptor is able to operate at 220˚F (104˚C) and has a flow rate of 25 gallons per minute (GPM) with a minimum grease capacity of 50 lb. The open-concept internal design provides unmatched grease retention and separation of debris.
Specifications
| Specifications | |
|---|---|
| Model | 3925XTA03 |
| Width | 18.5 inches |
| Depth | 31.25 inches |
| Height | 16.5 inches |
| Unit Weight (Empty) | 37.77 lb |
| Flow Rate | 25 GPM |
| Grease Capacity Min | 50 lb |
| Grease Capacity Actual | 73.01 lb |
| Surface Load Capacity | 440 lb |
| Connection Size | 3 inches |
| Liquid Capacity | 29.5 gal |
| Material | Plastic |
| Maximum Temperature | 220°F / 104°C |
| Colour | Grey |
