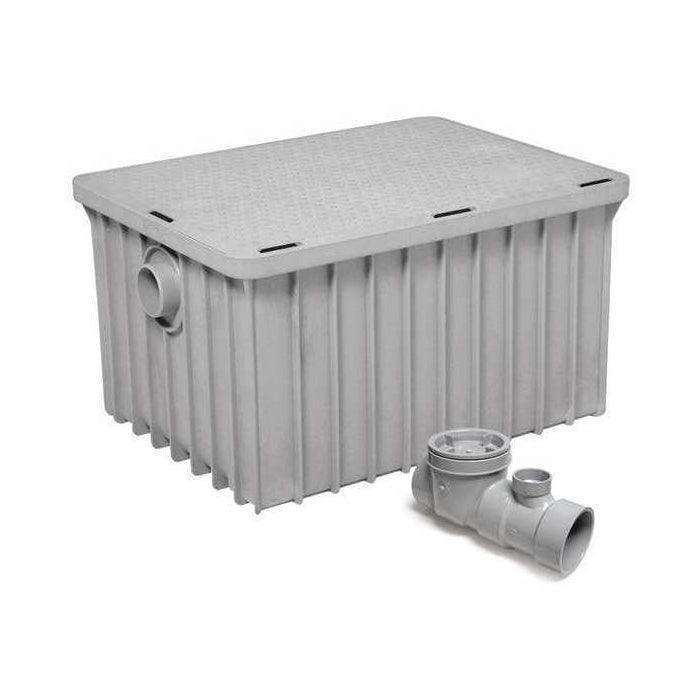

Canplas 3950A04 50 GPM Grease Interceptor - 100 lb. Capacity Min., 4" Connection
Product Overview
- 50 GPM flow rate
- Heavy-duty engineered thermoplastic
- 100 lb grease capacity
- Flexible installation
- 4" connection
Description
Preventing excessive grease accumulation and serious blockages in your plumbing is simple with the Canplas Endura 50 GPM Grease Interceptor.
Grease interceptors have become the industry standard in grease management and are designed to separate non-petroleum fats, oils, and grease from wastewater.
Appearance and Composition
Canplas Endura tanks are constructed from molds in order to eliminate any seams that could potentially cause leakage. The eco-friendly, engineered thermoplastic material is durable and ensures tanks won’t corrode, chip, or peel even under harsh conditions.
The Endura 50 GPM is a taller version of the Endura 35 GPM model and can be installed on the floor, in-floor, or slightly recessed. The tank’s cover can support an impressive 440 lb (220 kg) of pedestrian or light traffic, and its tool-free easy open latches make accessing the tank’s interior, effortless. A 4” connection as well as an air tight silicone seal prevent odours from leaving the interceptor.
Flow Rate and Capacity
This Endura grease interceptor is able to operate at 220˚F (104˚C) and has a flow rate of 50 gallons per minute (GPM) with a minimum grease capacity of 100 lb. The Canplas patented baffle system provides unmatched grease retention and separation of debris.
Specifications
| Specifications | |
|---|---|
| Model | 3950A04 |
| Width | 23.5 inches |
| Depth | 31 inches |
| Height | 23.5 inches |
| Unit Weight (Empty) | 60 lb |
| Flow Rate | 50 GPM |
| Grease Capacity Min | 100 lb |
| Grease Capacity Actual | 122.07 lb |
| Surface Load Capacity | 440 lb |
| Connection Size | 4 inches |
| Liquid Capacity | 52 gal |
| Material | Plastic |
| Maximum Temperature | 220°F / 104°C |
| Colour | Grey |
