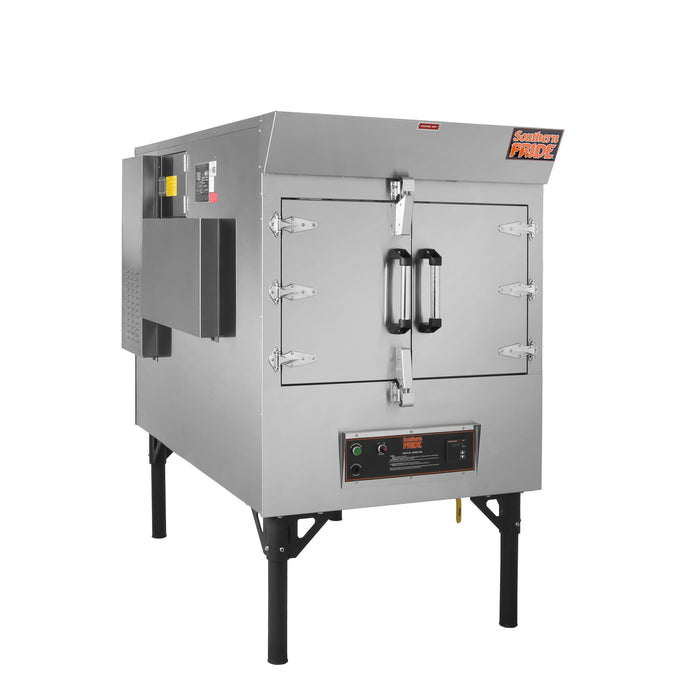

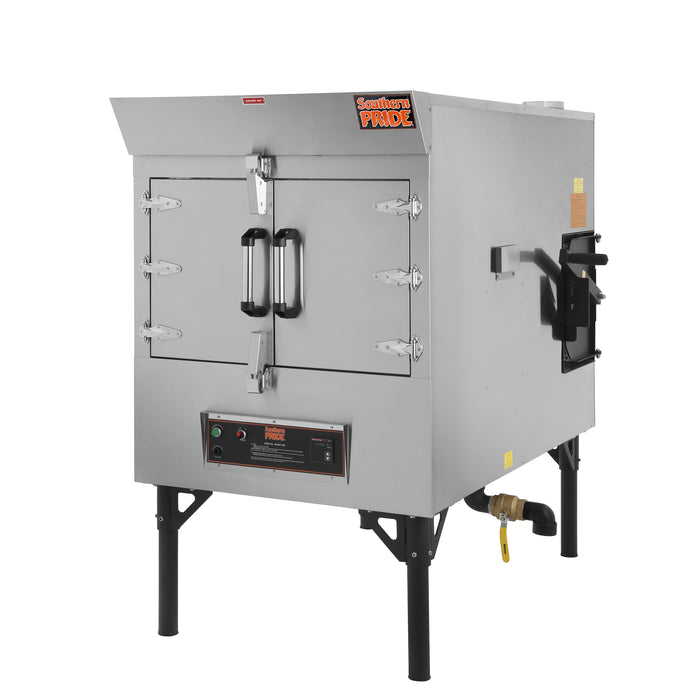

Southern Pride SPX-300 Gas Fired Wood‐Burning Rotisserie Smoker - 120V
Product Overview
- (4) 3‐tier, 3.5" (89mm) spacing, hanger assemblies 30 ft2 (2.79 m2) cooking surface
- Stainless steel construction; exterior and interior
- Mineral wool insulated cabinet
- Adjustable 19” (483mm) tall steel pipe legs
- Low velocity convection fan with 8" (203mm) fan blade (spare blade included)
- Control with on/off switch, a digital thermostat (140° to 325°F)(60° to 163°C), rotisserie advance button, and a pneumatic rotisserie advance foot switch
- 2" (51mm) grease drain with ball valve
- (12) 12” x 30” (305 x 762mm) nickel chrome plated product racks
Description
Convection Air System
The 75,000 BTU (22KW) burner heats the smoker cabinet and ignites the 2-3 fireplace size logs in the firebox to obtain the desired flavor, aroma, and texture. The convection fan draws the smoke from the firebox and circulates the smoke throughout the smoker cooking cabinet. The Subterthermic® front or rear flue increases the smoke flavor of the product, increases the heat efficiency, and reduces the wood usage.

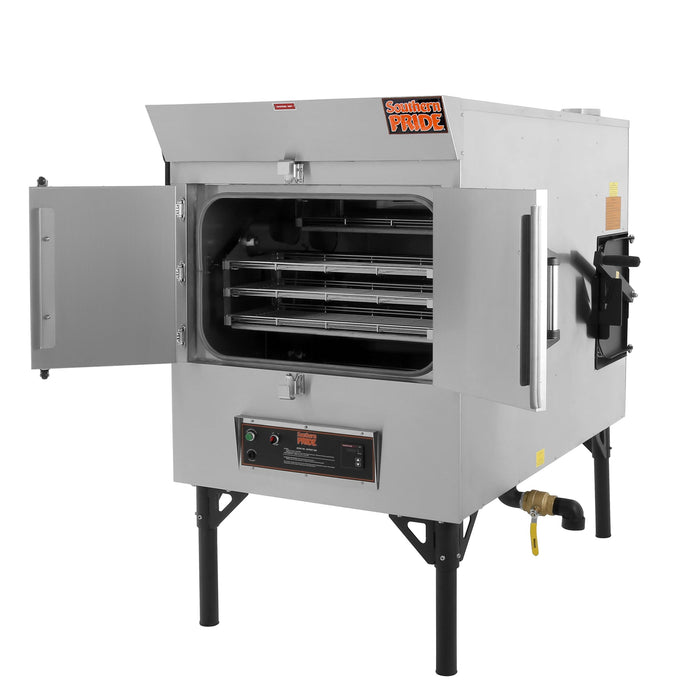

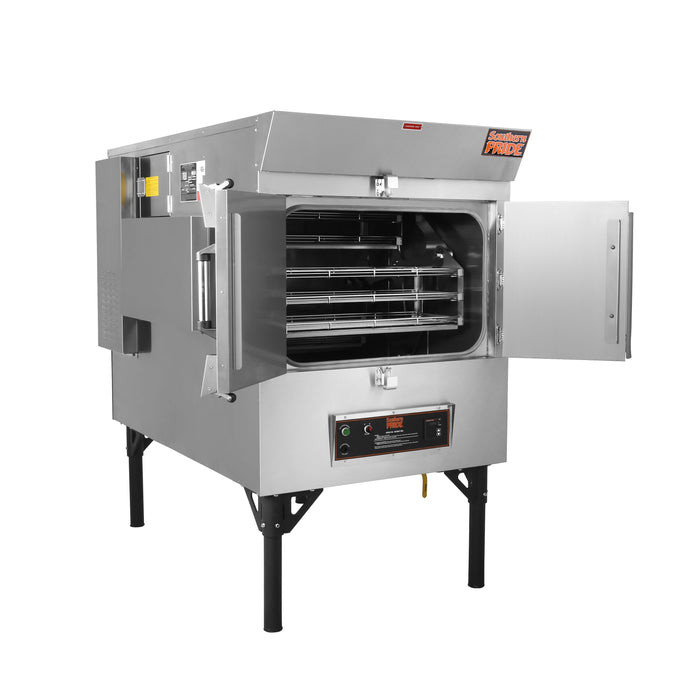

Smoker Interior
The entire smoker interior is stainless steel ensuring easy cleaning and decades of trouble-free use. The smoker comes standard with (4), 3-tier rack hangers that hold a maximum of (12), 12" x 30" (305 x 762mm) nickel chrome plated product racks with 3 1/2" (89mm) spacing.
Manual Digital Control Panel
The standard digital thermostat allows for cook temperature selection between 140° to 325°F (60° to 163°C), and will maintain consistent temperature throughout the cook cycle. The rotisserie can be advanced by pressing and holding the rotisserie advance button, or stepping on the rotisserie foot pedal for hands-free operation.
Smoker Exterior
The smoker exterior is stainless steel ensuring easy cleaning and decades of trouble-free use. The convection fan access door allows the convection fan blade to be accessed from the outside of the smoker for easy cleaning to ensure proper airflow and to prevent the convection fan motor from failing.
Approximate Smoker Capacities:
- Pork Butts (8-10 lbs)(3.6 - 4.5 kg) each - 32 pieces
- St. Louis Ribs (2.75 lbs)(1.2kg) each - 24 pieces
- Whole Chicken (3-4 lbs)(1.4 - 1.8 kg) each - 40 pieces
- Beef Brisket (12-15 lbs)(5.4 - 6.8 kg) each - 8 pieces
Specifications
| Specifications | |
|---|---|
| Model | SPX-300 |
| Width | 48.5 Inches |
| Depth | 71.25 Inches |
| Height | 66.63 Inches |
| Loading Capacity | 12 Racks (see description for full capacity details) |
| Voltage | 120V |
| Hertz | 60 Hertz |
| Phase | 1 Phase |
| Gas Supply | Natural Gas |
| Temperature Range | 140° to 325°F (60° to 163°C) |
| Product Type | Rotisserie Smoker Oven |
